Saray parametro na produkto

PARAMETER	CO53P6	KONDISYON / REMARKS
Nominal frequency range	10 ~ 800MHz	Fund., Overtone o PLL
Supply voltage	2.5VDC / 3.3VDC	Posible so arum ya opsyon
Mangiter na kaplesan	100mA	Maximum, Fund mode mas abeba so Icc
Say inkapekder na frequency	±25ppm / ±50ppm / ±100ppm	Nengnengen so nota ed leksab.
Say temperatura na operasyon	–10 anggad +70℃odino –40 anggad 85 degree	Wala ray arum ya opsyon.
Output waveform tan load	LVPECL / 50Ω	Diad Vcc--2
Say lebel na boltahe na ompaway et ATAGEY	Vcc-1.025V / Vcc-0.880V	Minimum / Maximum
Say lebel na boltahe na paway	Vcc-1.810V / Vcc-1.620V	Minimum / Maximum
Panaon na Itagey tan Ipelag	1.5ns	@ 20~80~20%Vcc
Simetriya (duty cycle)	45~55%	@ outputs cross point
Phase Jitter RMS	<1ps	Inkasakey ya 12kHz Mas abeba o mipara ed Fj Mas abeba o mipara ed 20MHz
Tandaan: Say inkapekder et mangilaktip ed saray iyaamot na frequency ed +25℃, ed loob na temperatura, lapud pananguman na boltahe na suplay, pananguman na karga na output, shock tan vibration.

Saray Tampok na Produkto

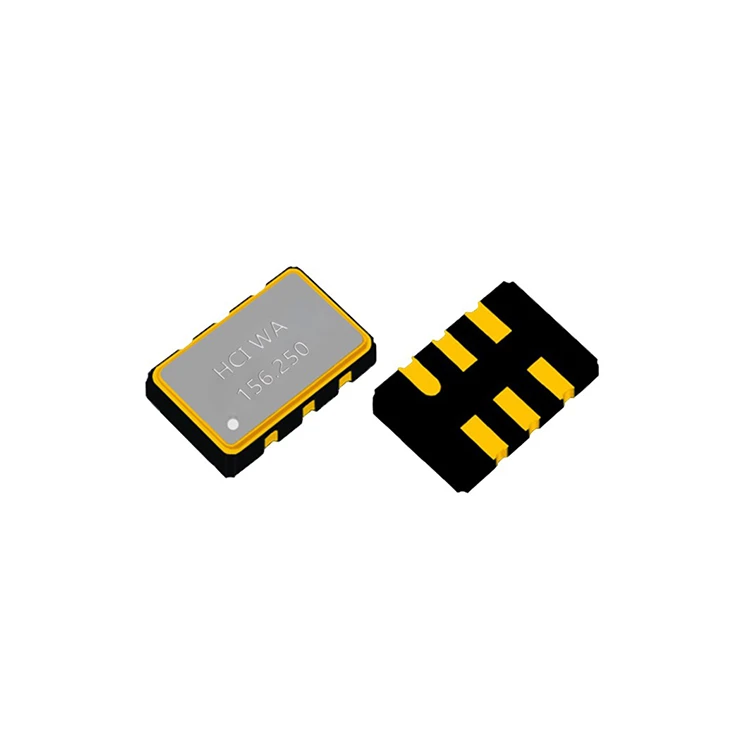

■ Melag so sukat to 5.0x3.2x1.3 ya walay 6 ya solder pad
■ Napanmatalkan a tuloy so seramik a pakete ya walay tahi to
■ Malaknab so frequency range

Saray Aplikasyon

Say Wide Temperature LVPECL OSC Oscillator 5032-CO53P6 series et malaknab ya uusaren ed High speed communication, Handheld equipment tan Telecom equipment.

Maples ya komunikasyon

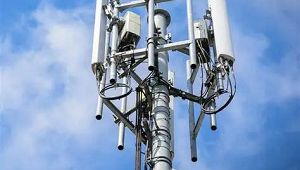

Saray wireless base station

Saray bentaha na produkto

Malaknab ya Frequency Range

Susuportaan toy malaknab ya nominal frequency range manlapud 10 MHz anggad 800 MHz, ya nagawaan panamegley na fundamental, overtone, odino PLL modes, ya mangiyoopresi na nikadkaduman inka-flexible na desinyo.

Atagey-Kapeles na Pandumaan na Panangipaway

Walay LVPECL ya output ya walay 50Ω load drive, ya walay maples ya 1.5ns ya rise/fall times, ya marakep parad high-speed digital interfaces.
